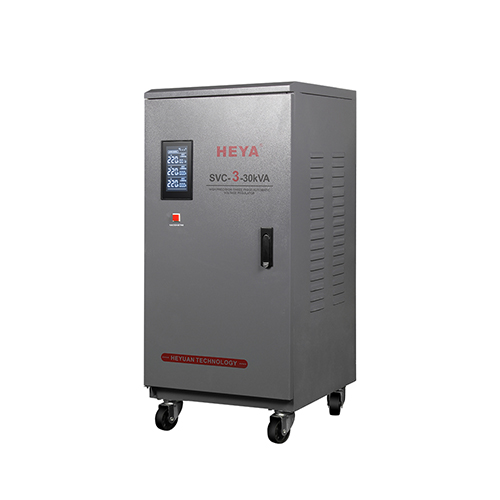

Vertical three phase servo type high accuracyfull automatic AC voltage regulator
| Model | Power output | Unit(pcs) | Package size(mm) | G.W.(Kg) |
| SDV-3-9000VA | 9000VA | 1 | 454x414x730 | 44 |
| SDV-3-15000VA | 15000VA | 1 | 485x455x910 | 59 |
| SDV-3-20000VA | 20000VA | 1 | 535x515x973 | 86 |
| SDV-3-30000VA | 30000VA | 1 | 535x515x973 | 91 |
| SDV-3-60000VA | 60000VA | 1 | 810x610x1345 | 215 |
| SDV-3-90000VA | 90000VA | 1 | 810x610x1345 | 245 |
If The input voltage is in the range of 210-250v the regulator is able to provide 100% listed maximum output power.Maximum output power Will change as the curve shown below
| Technology |
Relay Control System+Programmed control computerized + control algorithm relay“Cross zero” |
| Input voltage | three phase AC240-450V |
| Output voltage | three phase 380V±1.5% OR 3.5% |
| Phase | Single-Phase |
| Frequency | 50-60Hz |
| Adjust time | ＜1sec.(against 10% input voltage deviation) |
| Protection over voltage | ＜430±2V |
| Protection lack voltage | ＜320±2V |
| Delay | 3 second |
| Temperature protection | 110°C±10°C |
| Ambient temperature | -10~+45°C |
| Relative humidity | ＜90% |
| Wave form distortion | No additional wave form distortion |
| Efficiency | ＞95% |
| Dielectric strength | 1500V/min |
| Insulation resistance | ≥5MΩ |
